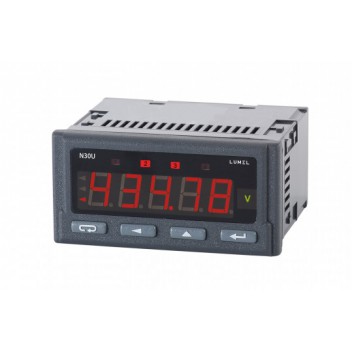

N30U

LUMEL POLAND Type N30U

Special features

• Inputs: temperature (RTDs Pt100/500/1000, thermocouples J, K, N, E, R, S), resistance, current (±20 mA), voltage (0–10 V, -10…60 mV).
• Outputs: 4 relays, 1 analog, RS-485/Modbus.
• Three-colour display (red/green/orange) with unit indication.
• 4 alarms, analog output (0/4–20 mA or 0–10 V) and min/max storage.
• Mathematical functions and full parameter configuration (display, thresholds, precision, alarms).
• Programming via keypad or RS-485 (eCon).
• Power supply 85–253 V or 20–40 V AC/DC, IP65, dimensions 96×48×64 mm.
